VZTOC-F1 遠端電子控制追焦器
原價223200元→特價130200元!專業的遠距離追焦控制!電影級的電子追焦系統,可使用轉盤或推軌遠端控制鏡頭追焦,真正達到Motion Control的境界。可以AB點設定,手感媲美高級的齒輪追焦器,是好萊塢電影製作時,攝影機安裝於Crane、交通載具上的最佳追焦控制解決方案!
- 客服電話:(02)87683842 / 客服信箱:mail@kphoto.com.tw
- 服務時間:週一至週五09:00-18:00
電影級的電子追焦系統,可使用轉盤或推軌遠端控制鏡頭追焦,真正達到Motion Control的境界,可以AB點設定,手感媲美高級的齒輪追焦器,是好萊塢電影製作時,必備的特殊角度取鏡工具! ※搭配電動雲台、監控螢幕便可成為影視製作最佳的遠端控制解決方案。 此產品擁有以下專業特點: 用途: 適用機型: 套組內容:
客訂商品注意事項: 注意事項: |
阻尼 |
類比推軌 |
觸控面板 |
LED照明
高相容度
產品規格:
Wireless Range: Up to 1000' w/ line of sight
Hand Unit Connector: Lemo 1B 8pin (comm)
Receiver Connectors: Lemo 1B 8pin (comm), 4pin (power in), 7pin (motor) Power: 7.2VDC Canon BP-927 type battery
Battery Life: Approx. 5 hours, longer w/ extended batteries
Warranty: 2 years
Components: 1-ch hand unit, 1 motor, 1-ch receiver, 2 antennae, universal gear set (0.6M Fujinon, 48DP/0.5M Canon, 32DP/0.8M Film, 64DP "Iris"), Battery, Charger, Customer-Specified Receiver Power Cable, Hard Case
System Wt. in Case: 8.2 lbs
Case Dim.: 15.5" x 12" x 7"
Hand Unit Wt.: 22.4 oz
Hand Unit Dim. (no antenna): 4.1" W x 7.65" L x 3.2" D
Receiver Wt.: 9.1 oz
Receiver Dim. (no antenna): 3.85" L x 2.5" W x 1.5" D
Antenna Dim. Add-On: 1.85" L
Motor Wt: 10.4 oz
Motor Dim.: 5.135" L x 2.43" W x 1.05 D ; Cable = 18" L
Charger Wt./Dim.: 3.1 oz / 4.5" x 2.8" x 1.1"
Battery Wt.: 3.3 oz
The F1 wireless follow focus system brings cinema grade lens control into the realm of the affordable-to-own. This powerful, intuitive system will pay for itself quickly and expand the capabilities of your productions. Although the price is relatively low, no corners were cut in the manufacture and design of the system. Expensive motor cores are painstakingly assembled into our zero backlash proprietary drive system, resulting in a smooth, quiet, highly dynamic operational range that will creep or blast off with equal grace. The compact receiver/motor driver is, on the surface, a no-frills black box, but deep down it's the transparent heart of the system, as it must execute all motor commands with unerring precision and authority.
The highly intuitive touchscreen-controlled hand unit is loaded with features that make it easy to use and powerful in operation. The custom machined fluid-drag focus knob is incredibly robust but delicate in action. A defeatable LED backlight ensures you'll always be able to hit the marks regardless of lighting, while the backing software allows great flexibility in setting the range and sensitivity of the knob response. The iris slider serves as an optional focus input for specific applications, but more fittingly it is already included if you ever decide to upgrade to a 2-channel focus/iris package.

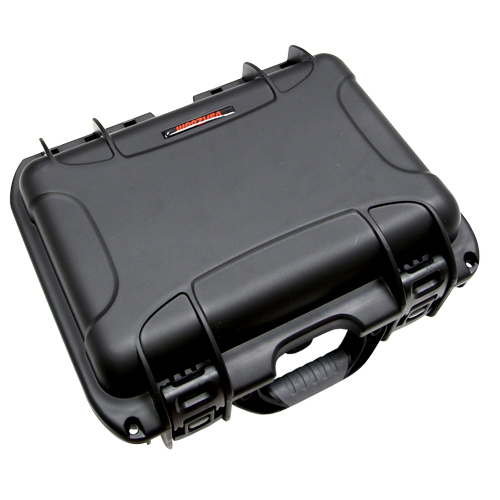

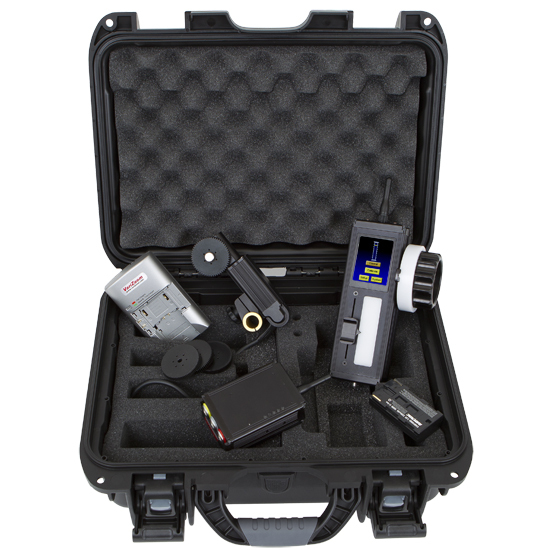

The entire system fits into a compact, waterproof hard case that will take just about anything you can throw at it, while our 2-year warranty and exceptional customer support offer peace of mind.
Features:
-Customer must specify receiver power cable (XLR, D-tap, etc.) - 1 cable included w/ system at no charge

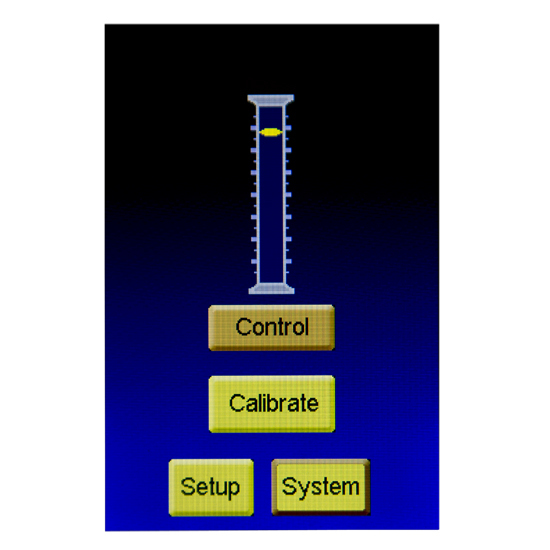

-Adjustable Touchscreen for setting of all parameters
-Redundant backup pushbuttons for operating GUI
-Defeatable LED backlighting for focus marker ring and iris marker strip
-Wireless OR Wired operation up to 1000'
-Signal strength LED indicator
項目 | 規格 | 項目 | 規格 |
---|---|---|---|
管徑 | 其他 | 類型 | 電動 |
商品本體
