Saramonic DSLR XLR抗噪雙軌混音分配器
產品編號:ABA306
抗噪雙軌混音器，支援XLR麥克風及無線麥克風 ，LIN / MIC / PH ，單聲道/立體聲輸出模式 ，支援AGC關閉功能 ，隔離式電源降低底噪 ，12V/48V雙幻象電源供電
對商品有任何問題嗎？
- 客服電話：(02)87683842 / 客服信箱：mail@kphoto.com.tw
- 服務時間：週一至週五09:00-18:00
 |
|||||||||||||||||
| Saramonic DSLR XLR 抗噪雙軌混音分配器 | |||||||||||||||||
 |
 |
||||||||||||||||
|
抗噪混音器
採隔離式電源降低低噪設計提升抗干擾效果呈現最佳的收音效果。
支援連接兩個麥克風(XLR OR 3.5無線麥克風)，並提供12或48V幻象電源，給專業的電容式麥克風使用。 自動增益功能控制， AGC(自動增益控制)功能消除了音頻電頻的波動
|
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
 |
|||||||||||||||||
 |
 |
||||||||||||||||
 |
 |
||||||||||||||||

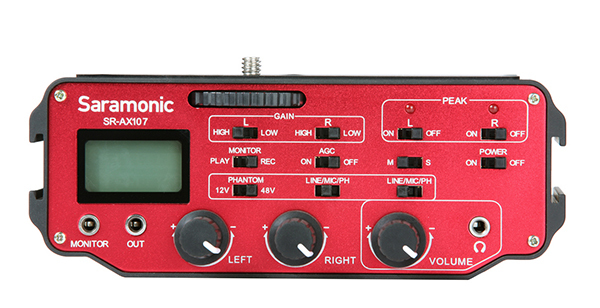

| SARAMONIC SR-AX107 The SARAMONIC SR-AX107 is a 2-channel XLR audio adapter with preamplifiers and phantom power, ideal for any DSLR cameras with a built-in microphone jack. Wide-variety of audio devices like professional condenser microphones, wireless microphones, external audio mixers, sound boards and more can be connected to the camera via this adapter. The SR-AX107 makes your recording work much easier. Level Meter allows you to verify the proper input levels in real time, the output signal can be adjusted by the level controls for optimum recording. The phone jack lets you monitor the audio from the adapter during recording, or camera during playback. The AGC disable feature reduces noise during quiet moments of recording by stop using the cameras' Auto Gain Control function. Inputs: Two balanced XLR inputs One Monitor input jacks Output: One stereo 1/8" (3.5 mm) Mini-Jack output Control Knobs: Left and Right Control Knobs adjust the signal of each channel to the optimum recording levels Volume Control knob adjusts the headphone volume level Mono /Stereo Switch: select mono or stereo output mode LINE / MIC/ PH Switches: Select LINE or MIC or Phantom levels 12V/48V Switch: Optional 12 or 48 volt phantom power for condenser microphones that require phantom power to operate. Level Meter: Indicates the sound level in dB for each channel LED indicators: The LED signal indicators flash red for overload Gain Switch: Selects LO for unity gain or HI for +20dB boost MONITOR: Headphone jack to monitor the audio from microphones or camera AGC DSBL: Camera Auto Gain Control will increase the gain to maximum level, the AGC Disable function reduces the hiss when the camera is recording during quiet moments. Input Levels:-3 dBu/ +14 dBu Output Level:Nominal MIC levels Frequency Response:20 Hz to 20 kHz (+/- 0.5 dB) THD:Less than 0.01% @ 1kHz, -30dBu input S/N Ratio:85 dB @ 1 Khz, -30 dBu input Gain:0 dB/ 20 dB Phantom Power:Dual regulated 12 or 48 volt power supplies Current to 14 mA (direct short) Level meter:-18 to +3 dB in 3 dB increments Dimensions:152 mm x 95 mm x 44 mm(L x W x H) Weight:18 oz (0.51 kg) |
|||||||||||||||||
商品本體
